Mercusys MA86XE AXE5400 Tri-Band WiFi 6E BT PCIe

Mercusys MA86XE; AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter Functions; Unstoppable Tri-Band Speed; •Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz); WiFi 6E Standard; •Expand to the clearer, broader 6 GHz band; Wider Signal Coverage; •Two high, ... více
Objednací kód: 517211091252
Kód výrobce: MA86XE
Výrobce: MERCUSYS
Záruční lhůta: 36 měs.
Dostupnost: skladem (>10 ks)
Cena bez DPH: 653 Kč
Cena s DPH: 790 Kč
Porovnání Oblíbené Hledat náhradníka

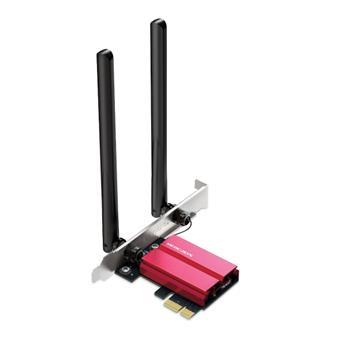

Mercusys MA86XE
AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

Functions
Unstoppable Tri-Band Speed

  • Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

WiFi 6E Standard

  • Expand to the clearer, broader 6 GHz band

Wider Signal Coverage

  • Two high-performance antennas

Bluetooth 5.3

  • The latest Bluetooth technology achieves faster speeds and broader coverage

Improved Security

  • The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility

  • Full support for 802.11ax/ac/a/b/g/n standards

Windows Compatible

  • Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.

Specifications


Wireless
Wireless Standards

  • IEEE 802.11 a/n/ac/ax 5 GHz
  • IEEE 802.11 b/g/n/ax 2.4 GHz

WiFi Speeds

  • 2402 Mbps on 6 GHz
  • 2402 Mbps on 5 GHz
  • 574 Mbps on 2.4 GHz

Reception Sensitivity
6 GHz:

  • 11ax HE160 MCS0:-86 dBm
  • 11ax HE160 MCS11:-56 dBm

5 GHz:

  • 11ax HE80 MCS0: -90 dBm
  • 11ax HE80 MCS11: -59 dBm
  • 11a 54Mbps: -77 dBm
  • 11ac VHT80 MCS0: -92dBm
  • 11ac VHT80 MCS9: -64dBm

2.4 GHz:

  • 11ax HE40 MCS0: -91 dBm
  • 11ax HE40 MCS11: -60 dBm
  • 11g 54Mbps: -76 dBm
  • 11n HT40 MCS7: -72dBm

Wireless Security

  • WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions

  • 930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)

Antenna Type

  • 2× Fixed High-Performance Omni-Directional Antennas
-|CZ|SK|EN
Wi-Fi pásma
Wi-Fi 2,4 GHz Ano
Wi-Fi 5 GHz Ano
Wi-Fi 6 GHz Ano
Standardy
WiFi 1 (802.11b) Ano
WiFi 2 (802.11a) Ano
WiFi 3 (802.11g) Ano
Wi-Fi 4 (802.11n) Ano
Wi-Fi 5 (802.11ac) Ano
Wi-Fi 6 (802.11ax) Ano
